НОВО
GB B550M GAMING X
- €109.40
| Vendor_url | https://www.gigabyte.com/bg/Motherboard/B550M-GAMING-X-rev-12 | |
| Manufacturer | Gigabyte | |
| Model | B550M GAMING X | |
| Socket | AMD AM4 | |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support:; - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz; * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version, HDCP 2.3, and HDR.; ** Support for native HDMI 2.1 TMDS compatible ports.; (Graphics specifications may vary depending on CPU support.); Maximum shared memory of 16 GB | |
| CPU's supported | AMD Socket AM4, support for:; AMD Ryzen™ 5000 G-Series Processors/; AMD Ryzen™ 5000 Series Processors/; AMD Ryzen™ 4000 G-Series Processors/; AMD Ryzen™ 3000 G-Series Processors/; AMD Ryzen™ 3000 Series Processors | |
| Chipset | AMD B550 | |
| Expansion slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:; - AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode; - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset:; - 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4; - 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1 | |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:; - AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs; - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs; 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs; 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Memory type | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory; Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | |
| Rear panel I/O | iTE® I/O Controller Chip | |
| USB | CPU:; - 4 x USB 3.2 Gen 1 ports on the back panel; Chipset:; - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header; - 2 x USB 3.2 Gen 1 ports available through the internal USB header; - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |

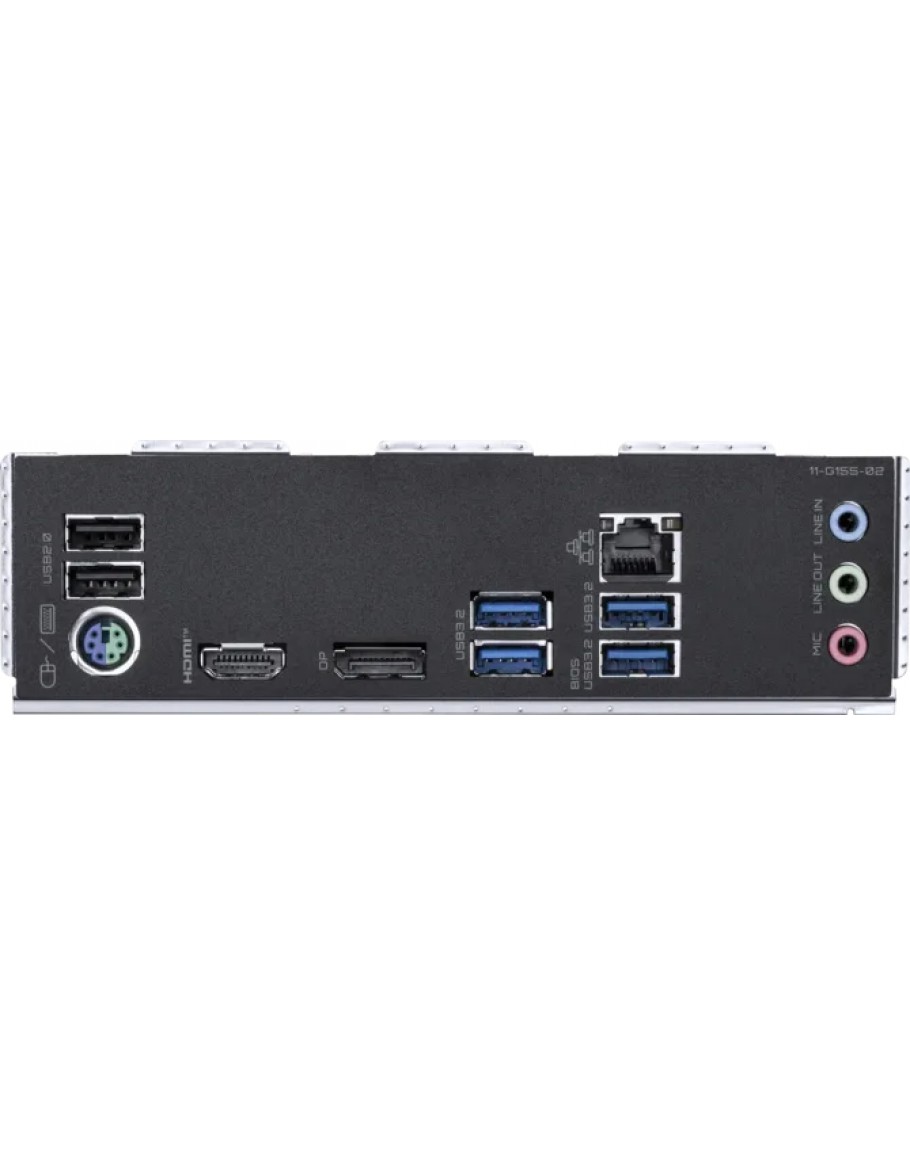

| Connectors | 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 1 x system fan header; 1 x system fan/water cooling pump header; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only); 1 x serial port header; 1 x Clear CMOS jumper; 1 x Q-Flash Plus button; Back Panel Connectors; 2 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 1 x HDMI port; 1 x DisplayPort; 4 x USB 3.2 Gen 1 ports; 1 x RJ-45 port; 2 x antenna connectors; 3 x audio jacks | |
| Audio | Realtek® ALC1220 CODEC; * The back panel line out jack supports DSD audio.; High Definition Audio; 2/4/5.1/7.1-channel | |
| Lan | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) | |
| BIOS | 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form factor | Micro ATX | |
| OS | Support for Windows 11 64-bit; Support for Windows 10 64-bit | |
| Dimensions | 24.4cm x 24.4cm |
