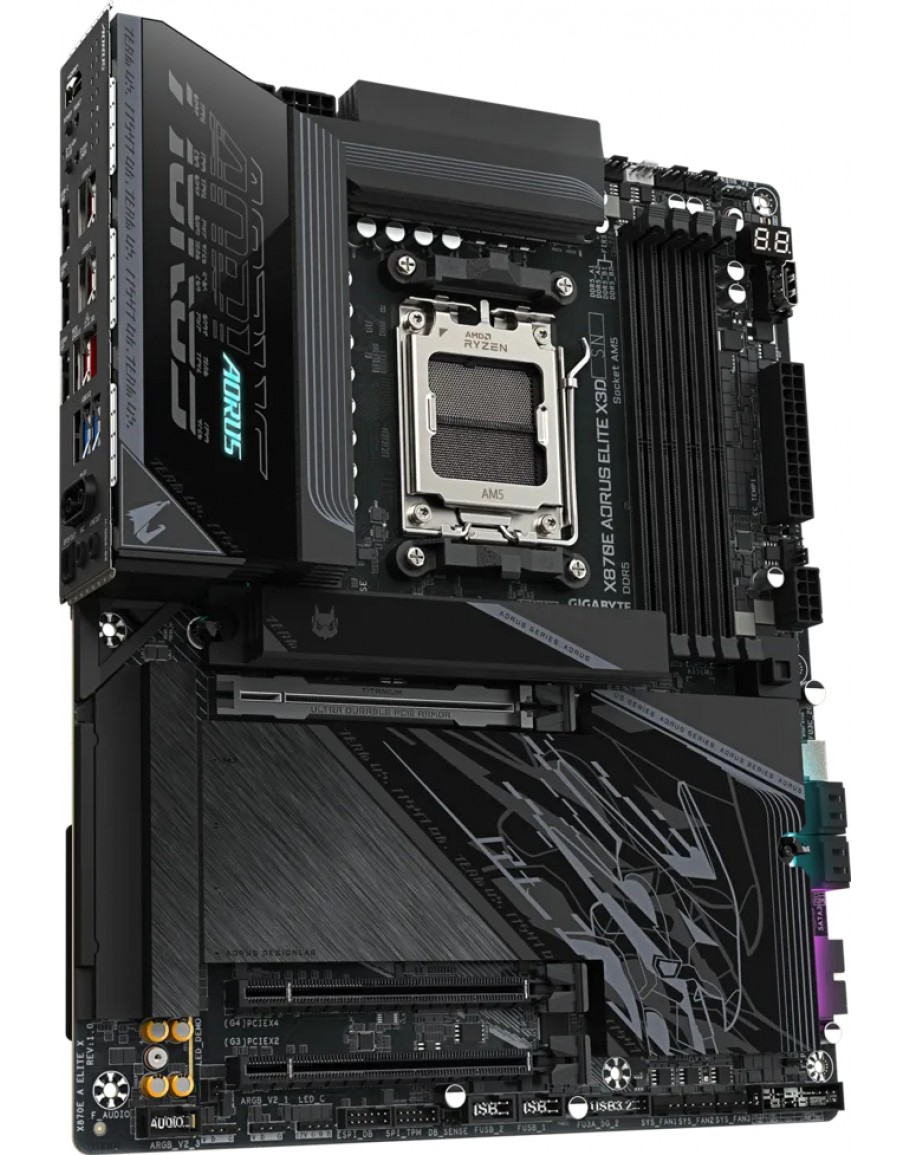

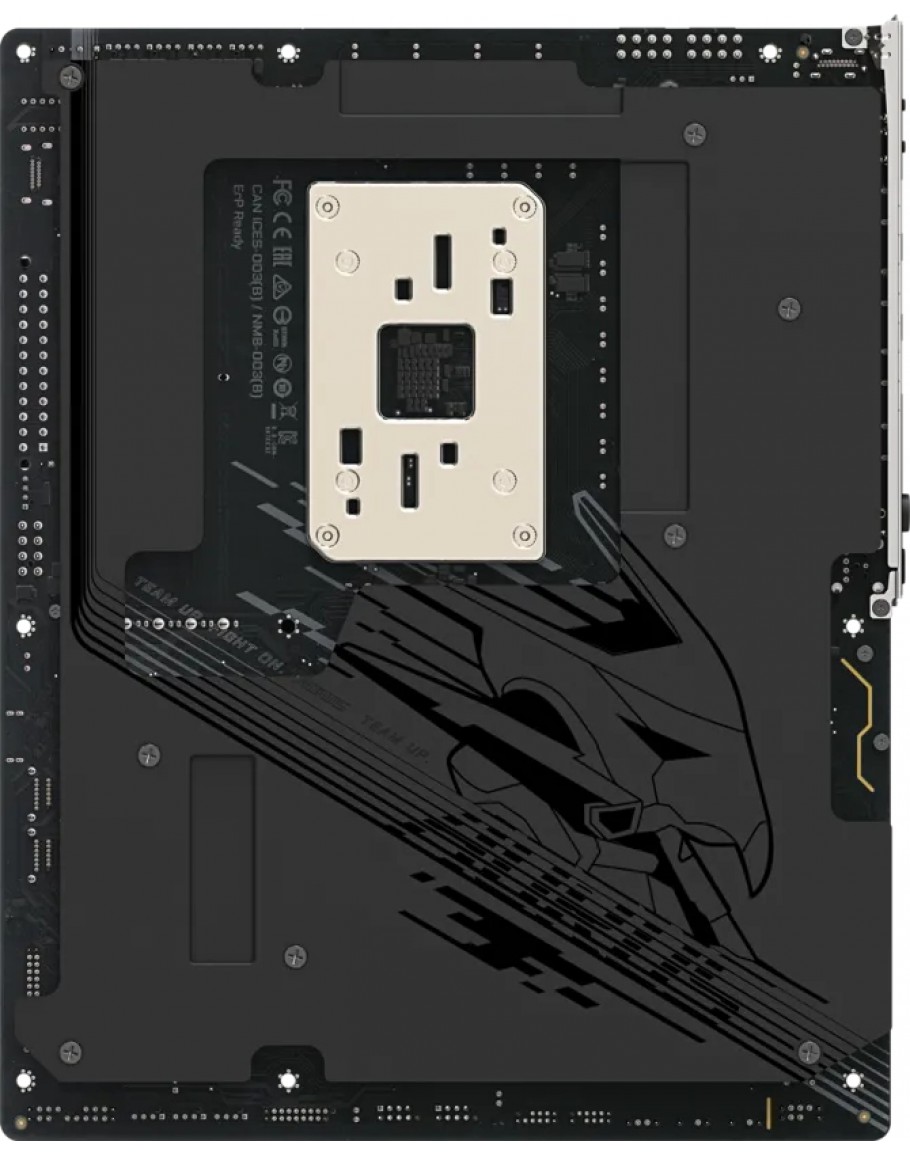

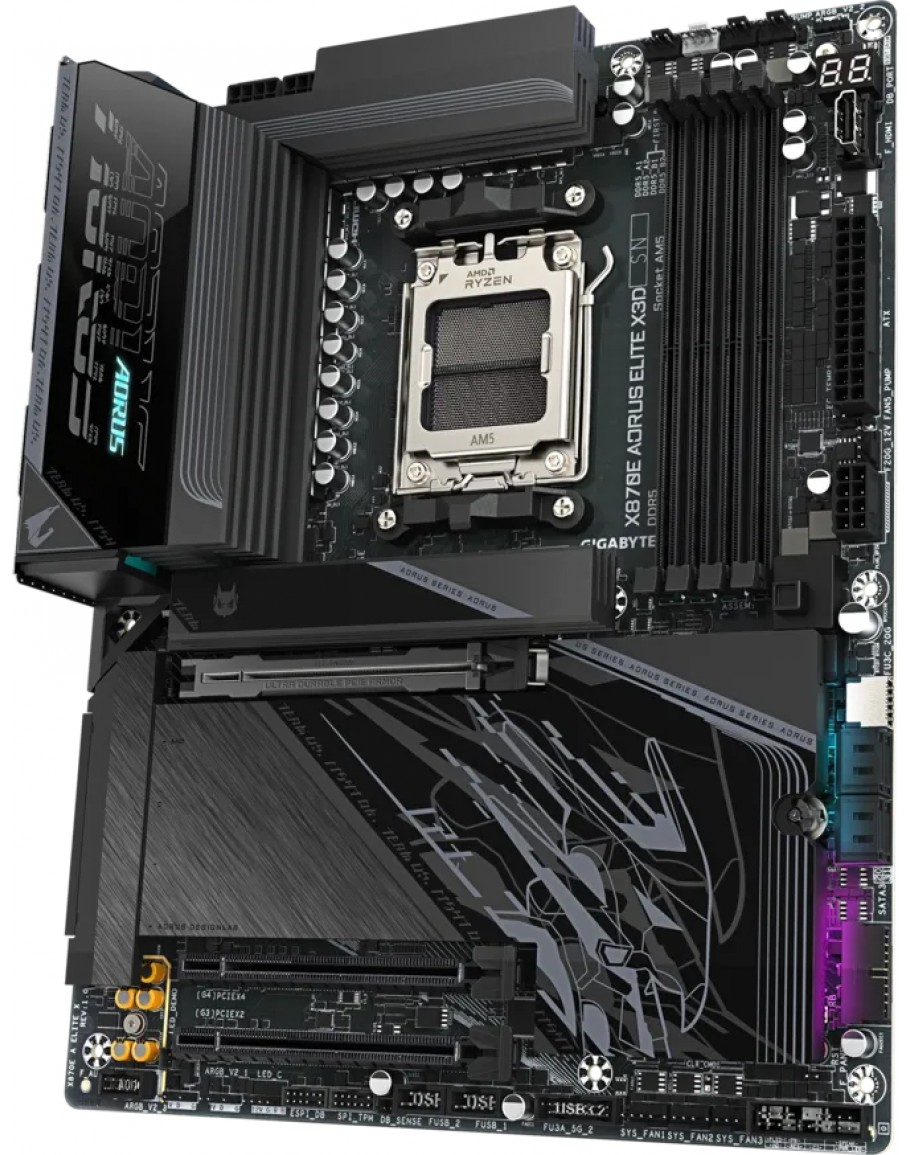

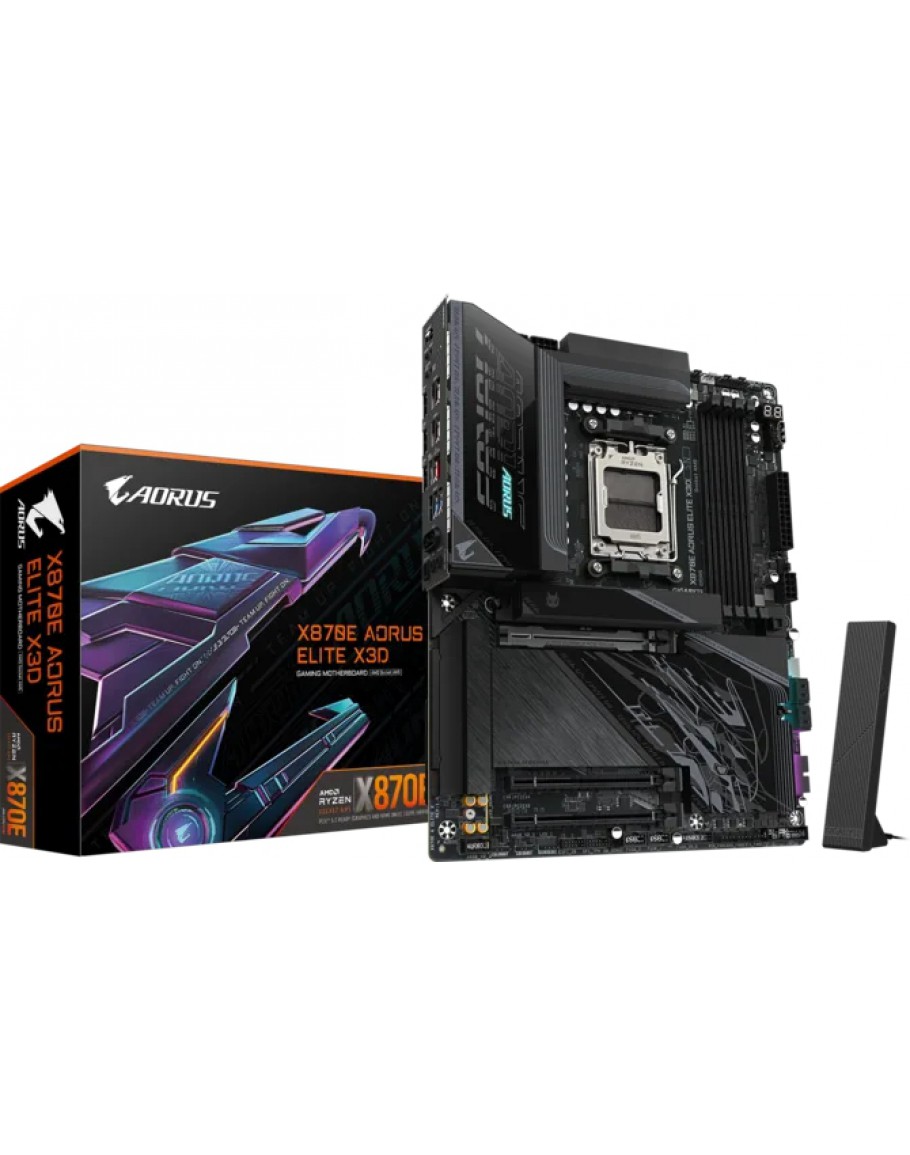

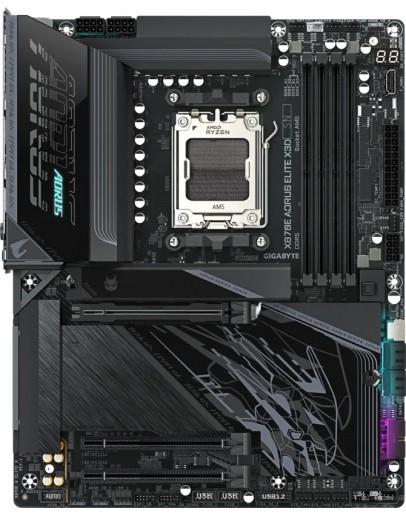

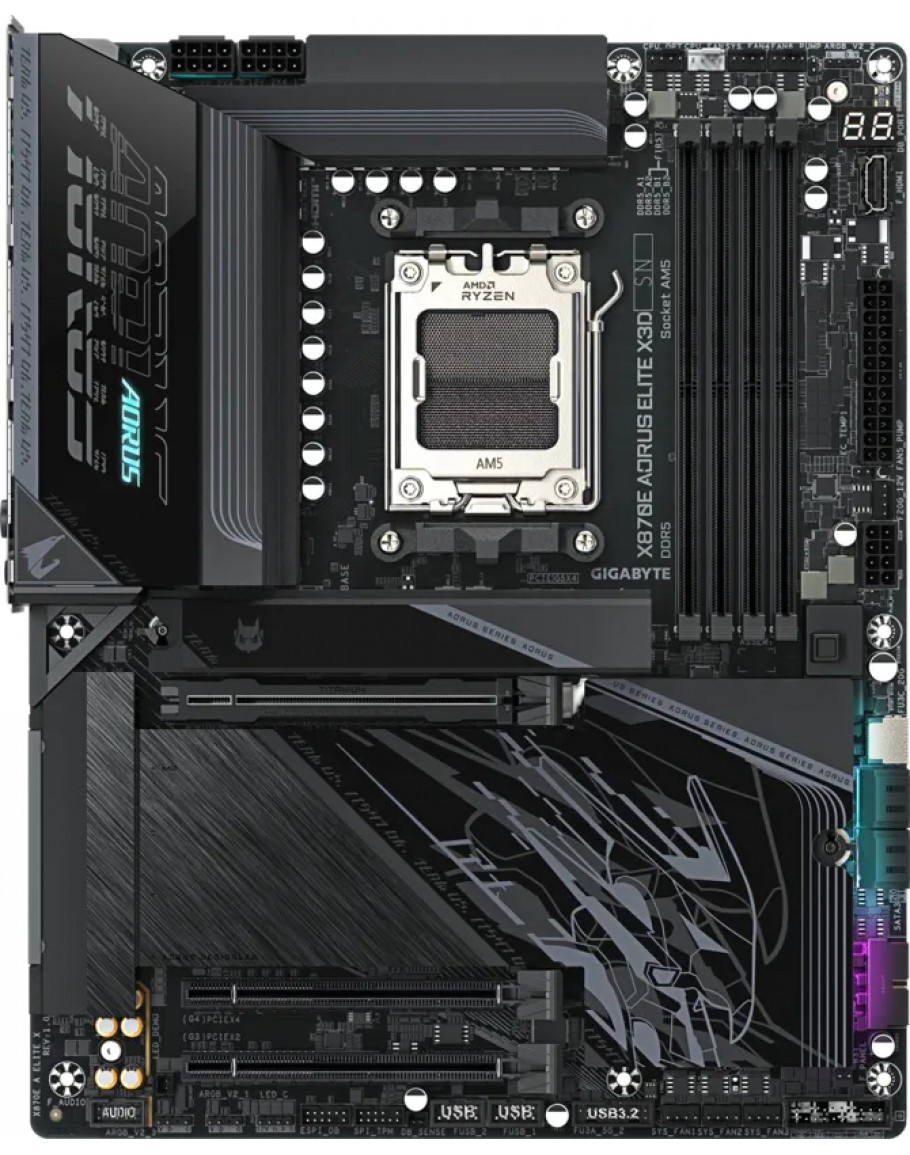

GB X870E AORU ELITE X3D
- €405.86
| Vendor_url | https://www.gigabyte.com/bg/Motherboard/X870E-AORUS-ELITE-X3D | |
| Manufacturer | Gigabyte | |
| Model | X870E AORUS ELITE X3D | |
| Socket | AMD AM5 | |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:; - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz; * Support for DisplayPort 1.4 version and HDR.; Integrated Graphics Processor with AMD Radeon™ Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version, HDCP 2.3, and HDR.; ** Support for native HDMI 2.1 TMDS compatible ports.; - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz; * Support for HDMI 1.4 version | |
| CPU's supported | AMD Socket AM5, support for:; AMD Ryzen™ 9000 Series Processors/; AMD Ryzen™ 8000 Series Processors/; AMD Ryzen™ 7000 Series Processors | |
| Chipset | AMD X870E | |
| Expansion slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:; AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode; AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset:; - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4); - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) | |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:; AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs; AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:; AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs; 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs; 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.; RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Memory type | Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules.; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules | |
| Rear panel I/O | iTE® I/O Controller Chip | |
| USB | CPU+ASMedia USB4® controller:; - 2 x USB4® USB Type-C® ports on the back panel; CPU:; - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support; Chipset+USB 3.2 Gen 1 Hub:; - 4 x USB 3.2 Gen 1 ports available through the internal USB headers; Chipset:; - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging); * For precautions regarding the fast charging function, refer to "USB Type-C® Header" in Chapter 2-7, "Internal Connectors."; - 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel; - 3 x USB 3.2 Gen 1 ports on the back panel; - 4 x USB 2.0/1.1 ports available through the internal USB headers | |

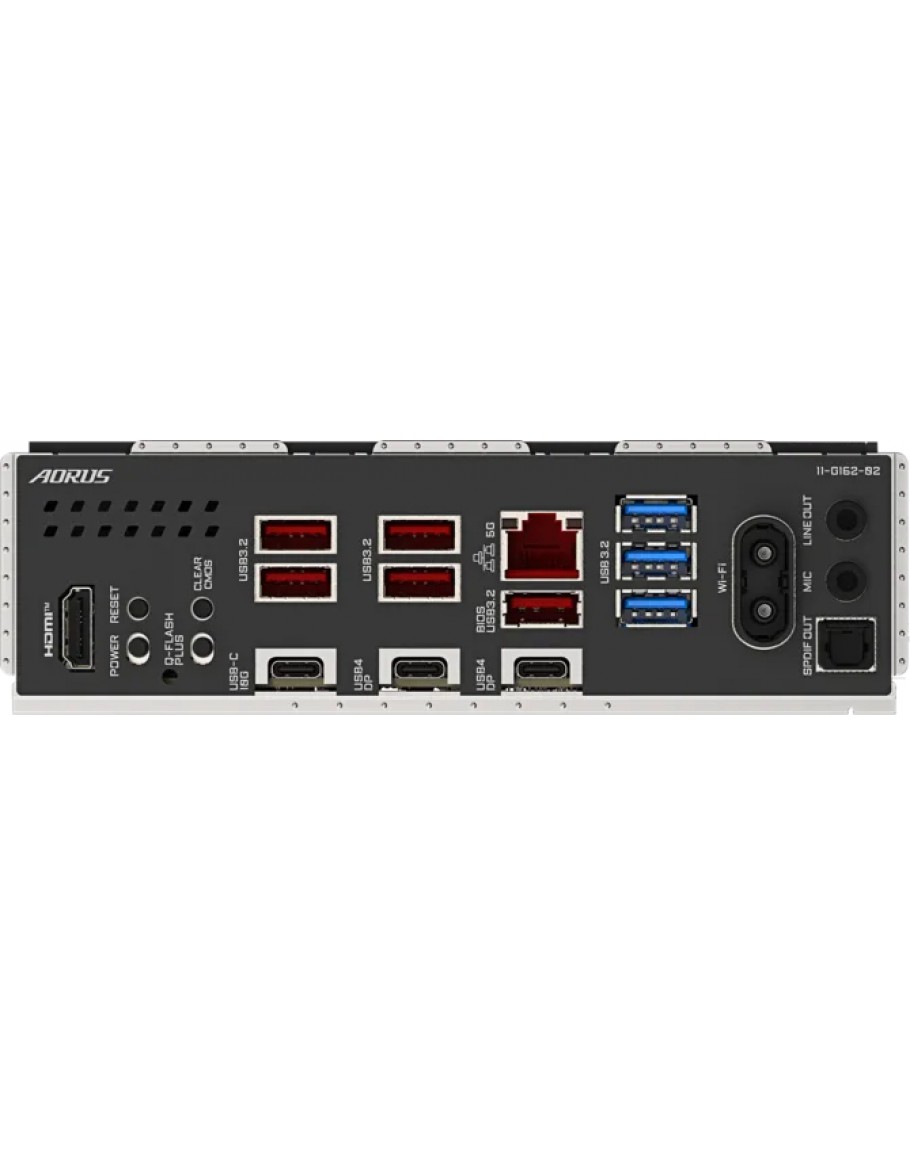

| Connectors | 1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x PCIe power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 4 x system fan headers; 2 x system fan/water cooling pump headers; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 4 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support; 2 x USB 3.2 Gen 1 headers; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only); 1 x HDMI port (Note); 1 x reset jumper; 1 x Clear CMOS jumper; 2 x temperature sensor headers; 1 x noise detection header; Back Panel Connectors; 1 x HDMI port; 1 x reset button; 1 x power button; 1 x Clear CMOS button; 1 x Q-Flash Plus button; 5 x USB 3.2 Gen 2 Type-A ports (red); 1 x USB Type-C® port, with USB 3.2 Gen 2 support; 2 x USB4® USB Type-C® ports (DisplayPort); 1 x RJ-45 port; 3 x USB 3.2 Gen 1 ports; 2 x antenna connectors (2T2R); 2 x audio jacks; 1 x optical S/PDIF Out connector; | |
| Audio | Realtek® ALC1220 CODEC; * The back panel line out jack supports DSD audio.; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.; Support for S/PDIF Out | |
| Wireless | Qualcomm® Wi-Fi 7 QCNCM865; - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.4; - Support for 11be 320MHz wireless standard; (Actual data rate may vary depending on environment and equipment.) | |
| Bluetooth | BLUETOOTH 5.4 | |
| BIOS | 1 x 512 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form factor | ATX | |
| OS | Support for Windows 11 64-bit | |
| Dimensions | 30.5cm x 24.4cm |
