НОВО

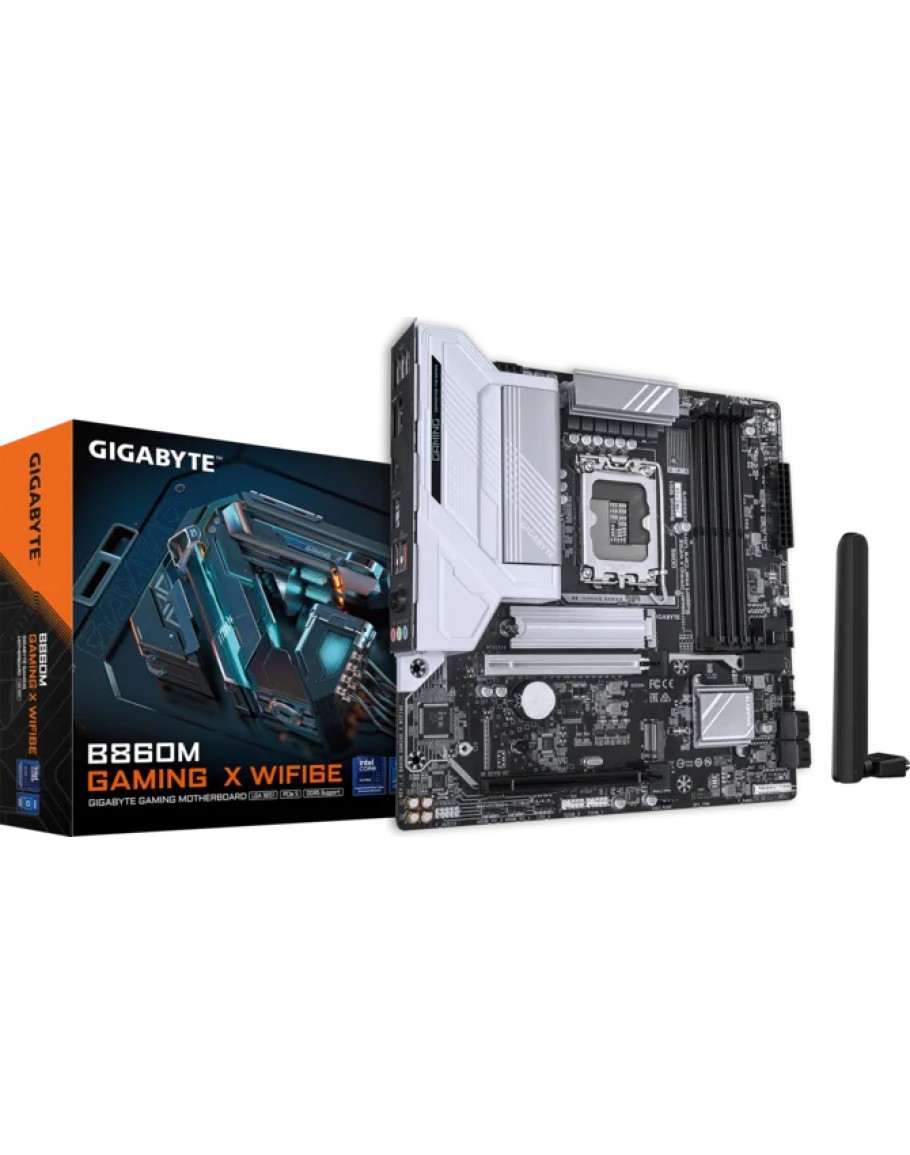

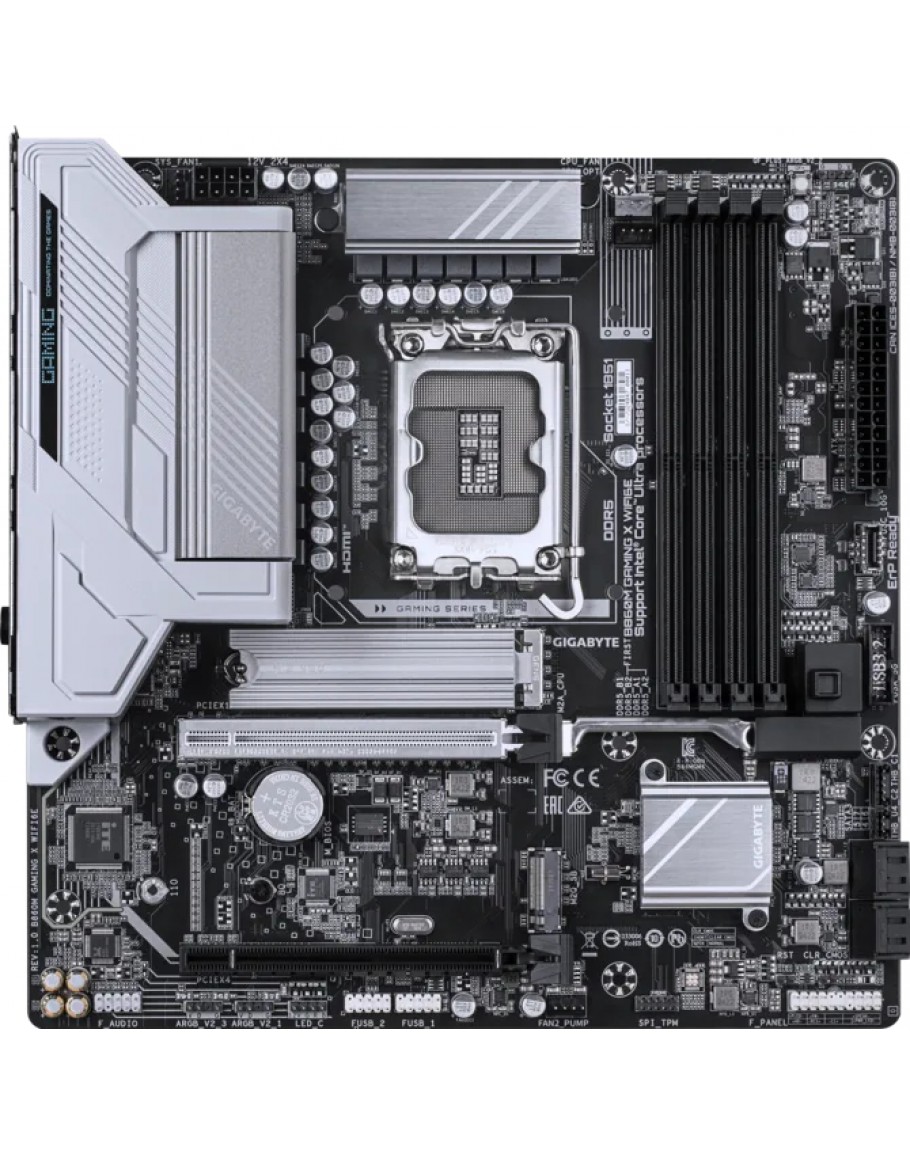

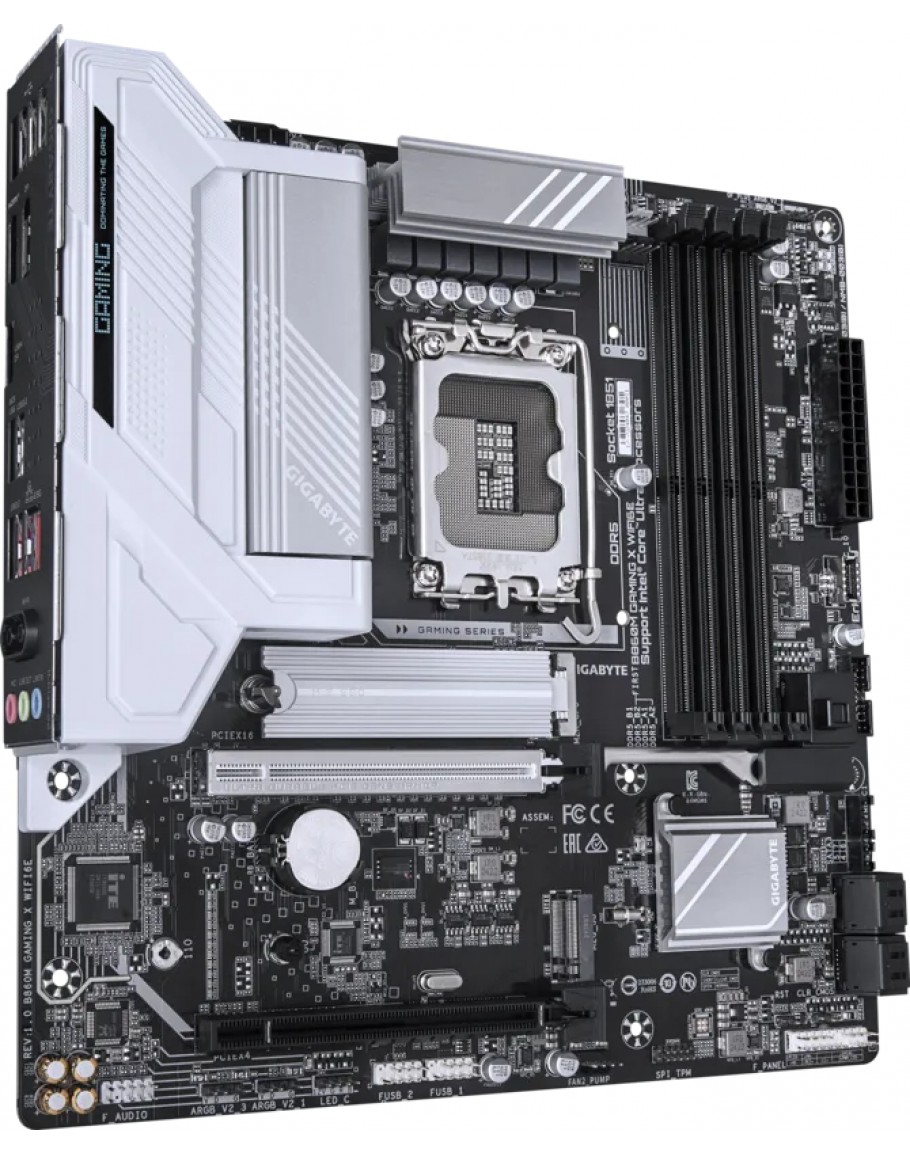

GB B860M GAMING X WIFI6E
- €204.63
| Vendor_url | https://www.gigabyte.com/se/Motherboard/B860M-GAMING-X-WIFI6E-rev-1x | |
| Manufacturer | Gigabyte | |
| Socket | Intel® B860 Express Chipset | |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support:; - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 2.1 version.; - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 2.1 version.; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ; (Graphics specifications may vary depending on CPU support.); Support for up to triple-display at the same time | |
| CPU's supported | LGA1851 socket: Support for Intel® Core™ Ultra Processors; (Go to GIGABYTE's website for the latest CPU support list.); L3 cache varies with CPU | |
| Expansion slots | CPU:; - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset:; - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| Storage | CPU:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU); Chipset:; - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB); - 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Memory type | Support for DDR5 9200(O.C)/ 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | |
| Rear panel I/O | iTE® I/O Controller Chip | |
| USB | CPU:; ; - 1 x USB4® USB Type-C® port on the back panel; Chipset:; - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header; - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header); Chipset+2 USB 2.0 Hubs:; - 9 x USB 2.0/1.1 ports (5 ports on the back panel, 4 ports available through the internal USB headers) | |

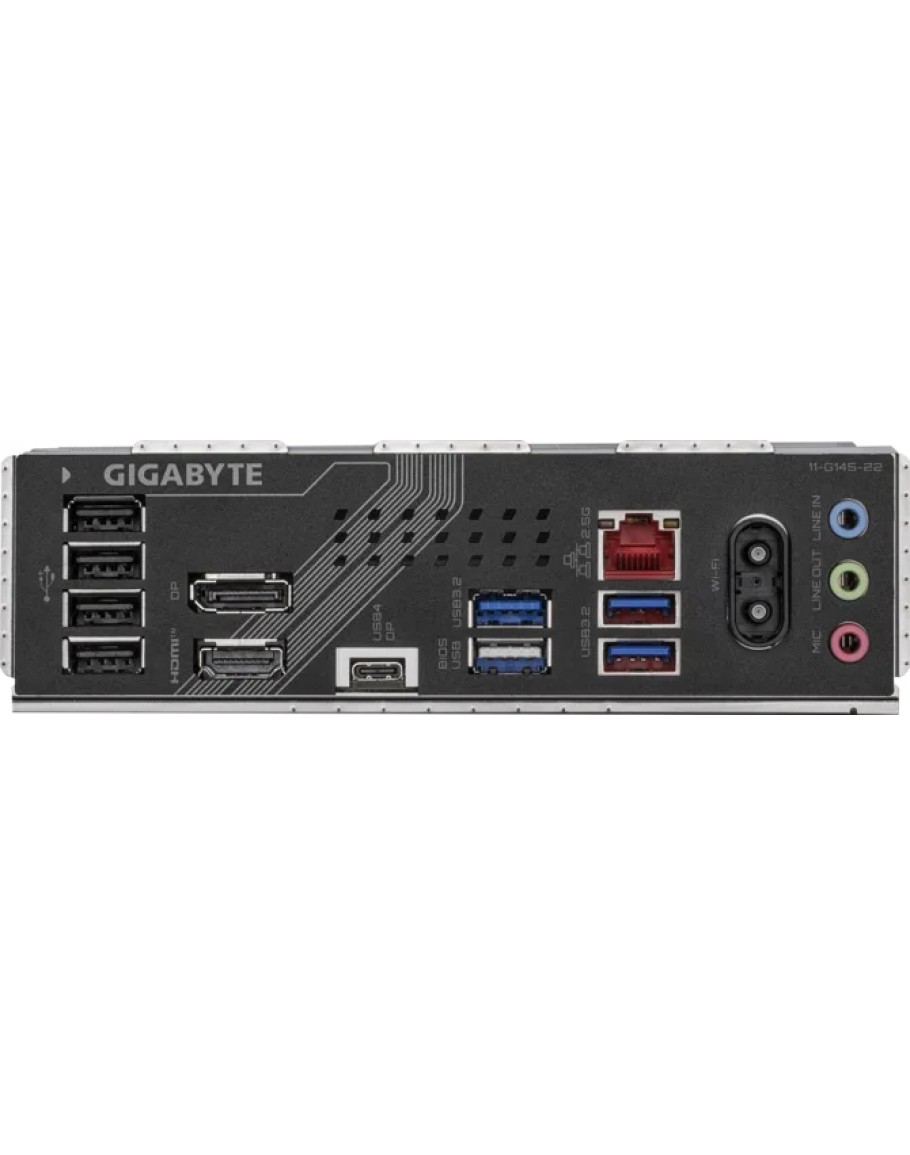

| Connectors | 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connectors; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 1 x system fan header; 1 x system fan/water cooling pump header; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only); 2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only); 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper; Back Panel Connectors:; 1 x HDMI port; 1 x DisplayPort; 1 x USB4® USB Type-C® port (DisplayPort); 3 x USB 3.2 Gen 1 ports; 5 x USB 2.0/1.1 ports; 2 x antenna connectors (2T2R); 1 x RJ-45 port; 3 x audio jacks | |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless | Wi-Fi 6E (802.11ax), Tri-Band (2.4 / 5 / 6 GHz), 160 MHz | |
| Bluetooth | Bluetooth 5.3 | |
| BIOS | 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form factor | Micro ATX | |
| OS | Support for Windows 11 64-bit | |
| Dimensions | 24.4cm x 24.4cm |
