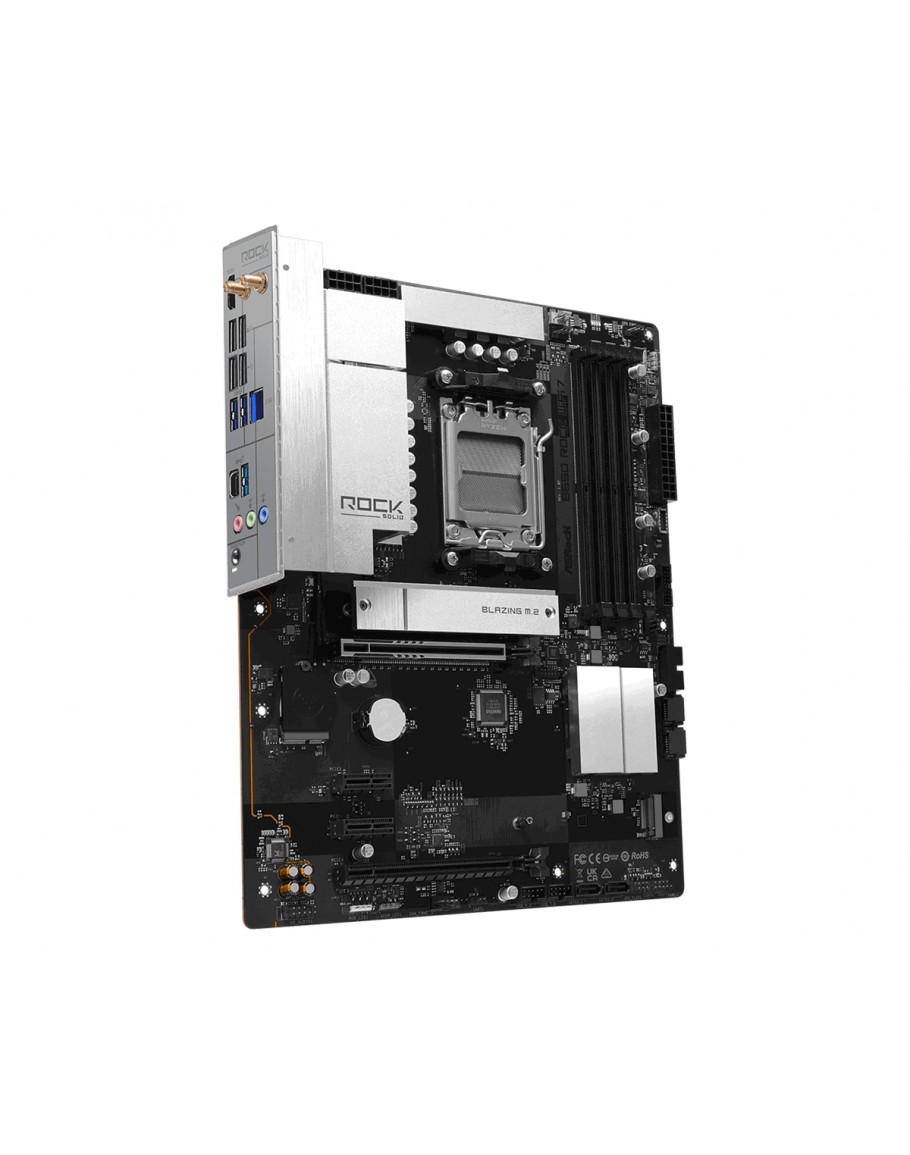

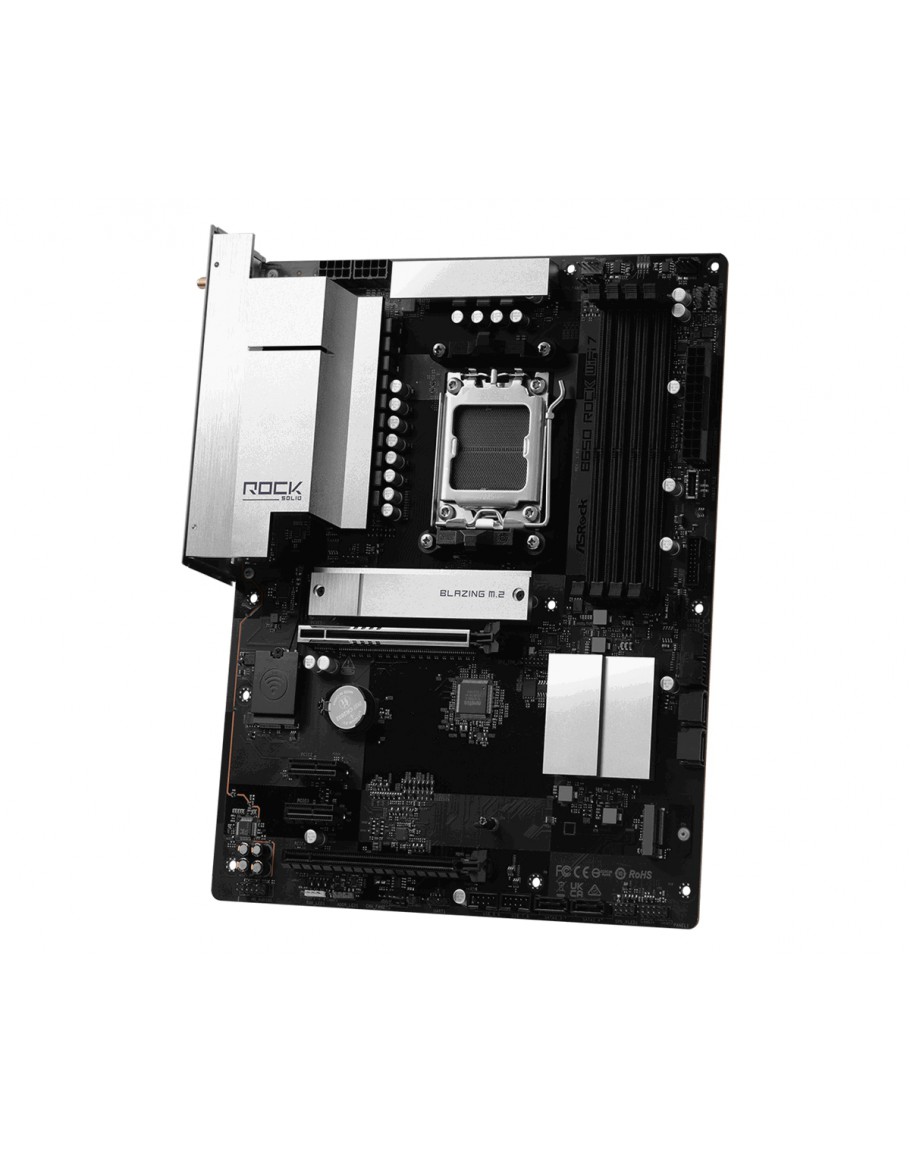

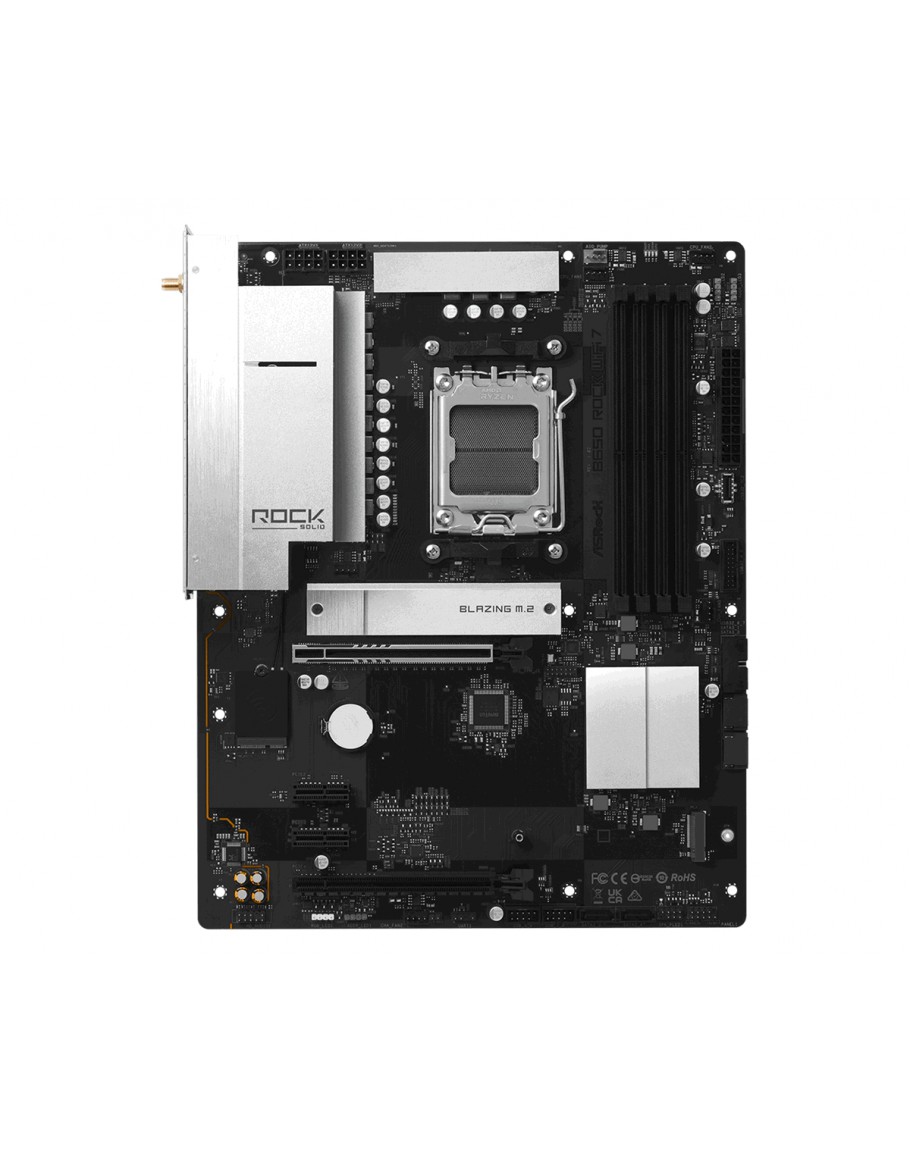

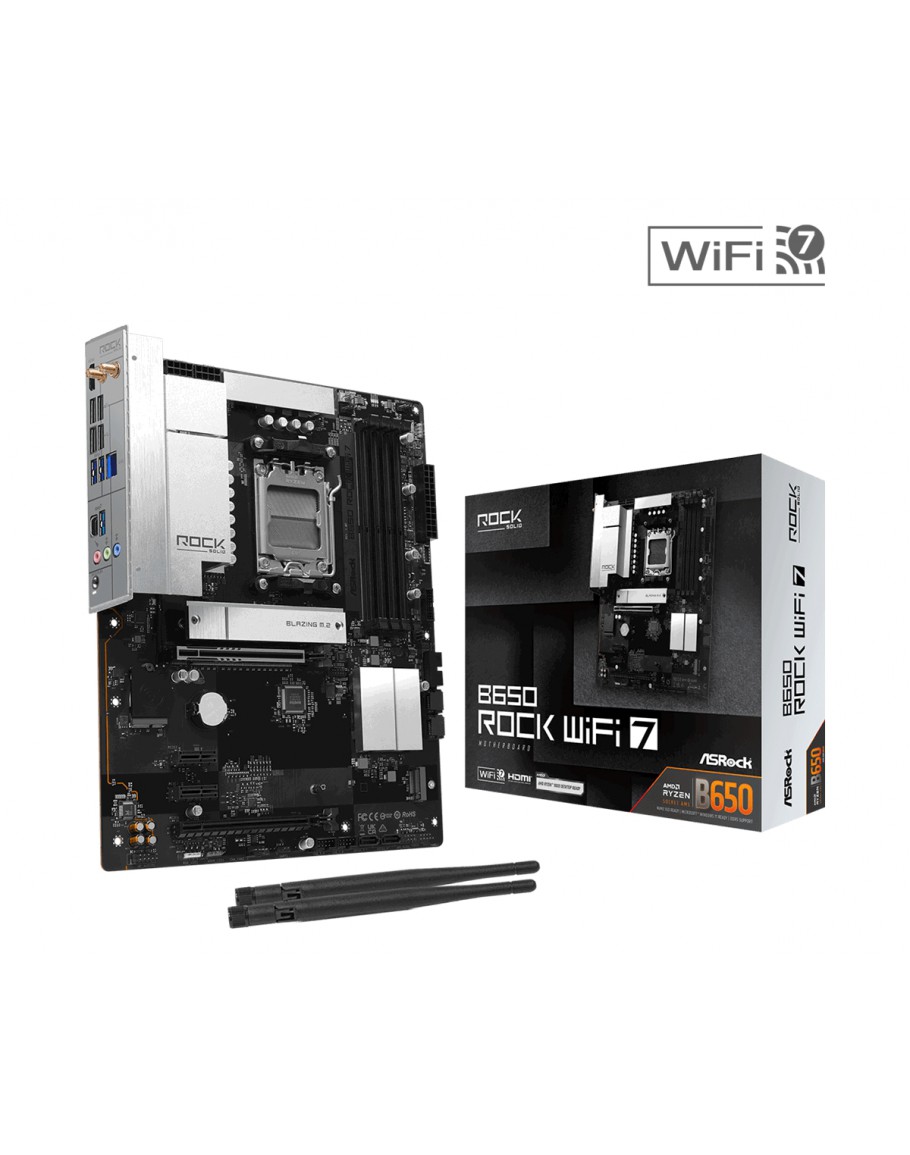

ASROCK B650 ROCK WIFI7
- €169.59
| Vendor_url | https://www.asrock.com/MB/AMD/B650%20Rock%20WiFi%207/index.asp?utm_source=chatgpt.com#Overview | |
| Manufacturer | ASRock | |
| Model | B650 Rock WiFi 7 | |
| Socket | AMD AM5 | |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz | |
| CPU's supported | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors | |
| Chipset | AMD B650 | |
| Expansion slots | CPU:; - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode; - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode; Chipset:; - 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3); - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module | |
| Storage | CPU:; - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode; Chipset:; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode; - 4 x SATA3 6.0 Gb/s Connectors | |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices | |
| Memory type | Dual Channel DDR5 Memory Technology; 4 x DDR5 DIMM Slots; Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC); Max. capacity of system memory: 256GB; Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | |

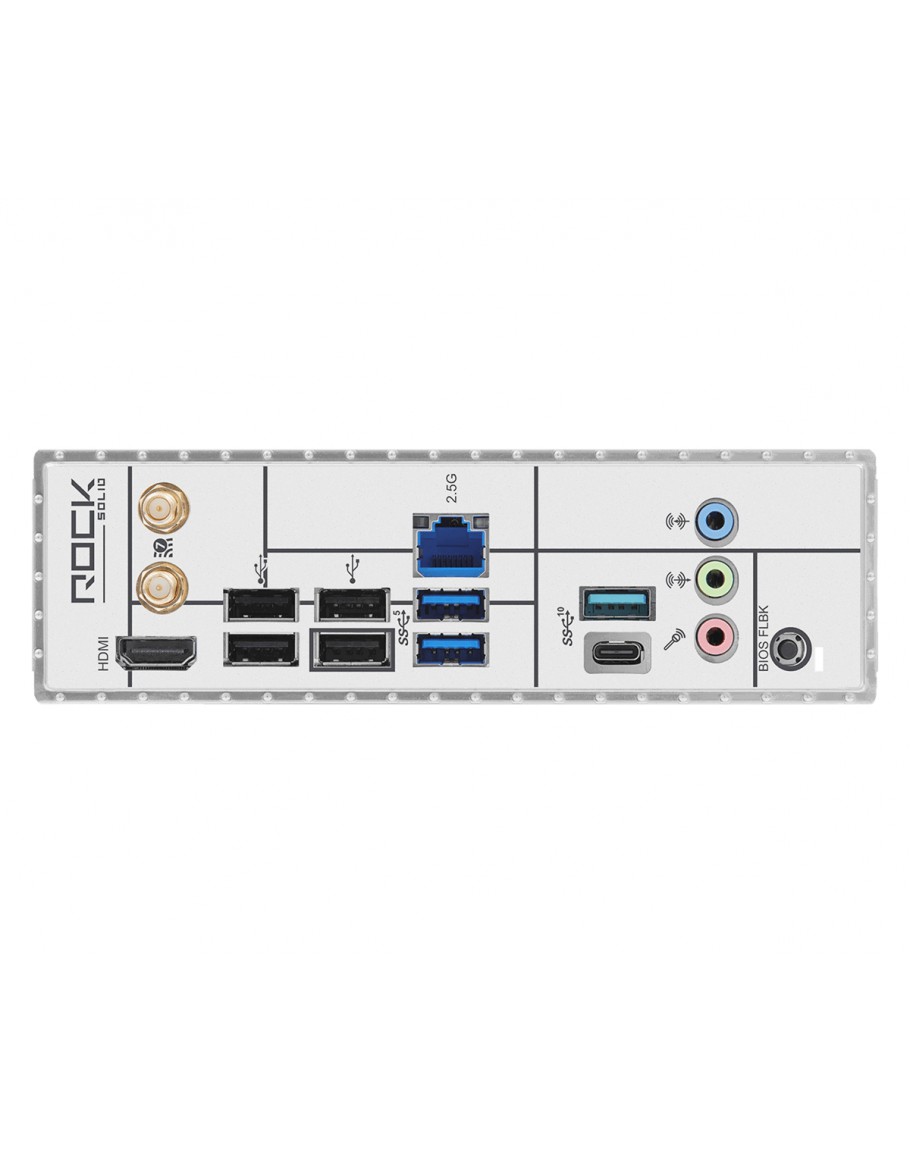

| Rear panel I/O | 2 x Antenna Ports; 1 x HDMI Port; 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s); 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s); 2 x USB 3.2 Gen1 Ports; 4 x USB 2.0 Ports; 1 x RJ-45 LAN Port; 1 x BIOS Flashback Button; HD Audio Jacks: Line in / Front Speaker / Microphone | |
| USB | CPU:; - 1 x USB 3.2 Gen2 Type-C (Rear); - 1 x USB 3.2 Gen2 Type-A (Rear); - 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1)); Chipset:; - 1 x USB 3.2 Gen1 Type-C (Front); - 5 x USB 3.2 Gen1 Type-A (1 Rear (USB32_2), 4 Front); - 8 x USB 2.0 (4 Rear, 4 Front) | |
| Connectors | 1 x SPI TPM Header; 1 x Power LED and Speaker Header; 1 x RGB LED Header; 3 x Addressable LED Headers; 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control); 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control); 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control); 1 x 24 pin ATX Power Connector; 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector); 1 x Front Panel Audio Connector; 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports); 1 x Front Panel Type C USB 3.2 Gen1 Header | |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) | |
| Lan | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; Dragon RTL8125BG; Supports Dragon 2.5G LAN Software; Smart Auto Adjust Bandwidth Control; Visual User Friendly UI; Visual Network Usage Statistics; Optimized Default Setting for Game, Browser, and Streaming Modes; User Customized Priority Control | |
| Wireless | 802.11be 2x2 Wi-Fi 7 Module; Supports IEEE 802.11a/b/g/n/ac/ax/be; Supports 2.4GHz/5GHz/6GHz frequency band; Supports 160MHz channel bandwidth with 6GHz frequency band; 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology; Supports Bluetooth 5.4; Supports MU-MIMO | |
| Bluetooth | Supports Bluetooth 5.4 | |
| BIOS | 512Mb AMI UEFI Legal BIOS with GUI support | |
| Form factor | ATX, 8 Layer PCB | |
| OS | Microsoft Windows® 10 64-bit / 11 64-bit | |
| Other | Superb Productivity; - PCIe Gen5 (Graphics, M.2); - Dual Channel DDR5; Rock-Solid Durability; - 9+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC; - Pre-Installed I/O Shield; Ultrafast Connectivity; - 2.5G LAN, 802.11be Wi-Fi 7 Module; EZ Update; - BIOS Flashback Button; - ASRock Auto Driver Installer; EZ Troubleshooter; - ASRock Post Status Checker | |
| Dimensions | 30.5 cm x 24.4 cm |
